Globe Valve

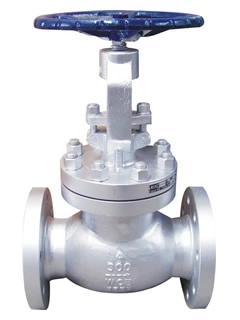

Cast Steel Globe Valve


  • Meet design ANSI B16.5, B16.34, B16.10,B16.25 (for NPS≤24), MSS SP-44(for NPS>24), API-600
  • Straight and Y patteren body design
  • OS & Y,outside screw and yoke
  • BB,Bolted bonnet
  • Yoke intergral with bonnet
  • Rising stem and handwheel
  • Loose disc,choice of plug or ball
  • Renewable seat ring or Body seat ring
  • Impact handwheel for 10" & above
  • Horizontal servece
  • Flanged or buttwelding ends
  • Normal Size: 2"~20"
  • Pressure: 150LB~2500LB
  • Connection: Flanges,RTJ Flange,Butt Weld,Groove
  • Material:Carbon Steel, Forged Steel
  • Carbon Steel: ASTM A105, ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12, ASTM A217 C12A
    Stainless Steel: ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CM8, ASTM A890 GR4A, ASTM A890
  • Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric  Actuator, Hydraulic Actuator.


Steel Globe Design: API 600 / BS1873

Steel Valves: ASME B16.34

Face to Face according to: ASME B16.10

Flanges Ends according to: ASME B16.5

Butt Welding Ends according to: ASME B16.25

Inspection and Testing according to: API 598 / API 6D
