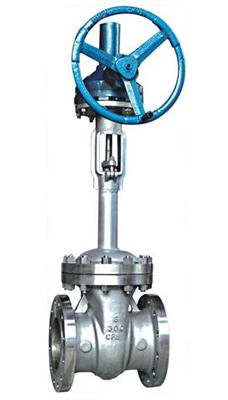

Cryogenic Gate Valve

cryogenic gate valveCryogenic valves normally refer to valves with working temperature blow -110℃. It is widely used in LNG, LPG and other low temperature industry.Valves designed for cryogenic services, are specially prepared and designed to overcome these challenges. Appropriate component materials such as 304SS (CF8) and 316SS (CF8M) are normally used for body and trim, offering superior impact strength, and excellent corrosion resistance and heat loss properties. An extended bonnet and gas column design is also normally adopted to provide thermal insulation at the stem seal and stem packing area. At sufficient length, this design feature places the functionality of the stem seal in the vapor zone of the liquid media providing safe and continuous valve operation. A variety of body, trim, seat, and seal materials are available for use in cryogenic service. Customer specified options, such as body cavity vent hole, special extension lengths, and materials are also available upon request.

KOJO Cryogenic gate valve service up to -196℃. Our in-house computer controlled test facility can certify valves up to 36".

Specifications

Class 150~600 Cryogenic Gate Valve

Size: NPS 2"~24"

Bolted Lengthen Bonnet, Threaded or Welded Seat Ring

Full Bore, OS&Y, Flexible Wedge

Pressure relief hole on seat

Material: ASTM A352 LCB/LC1/LC2/LC3/LC4, A351 CF8

Drive Mode: Manual, electric, pneumatic, gear drive

Standards

Design and Manufacture: API 600, API 6D, BS1414

Face To Face(end to end): ANSI B16.10, API 6D

Flanged Connection: ANSI B16.5

Butt welded end: ANSI B16.25

Test and inspection: API 598, API 6D
