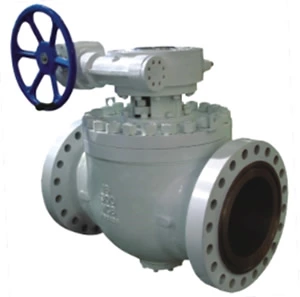

Top Entry Ball Valve

top entry ball valveKOJO series BT Top entry ball valves are available in size 2~24”ANSI class rating 150 to 1500 and temperature ratings of -46 to 250 . A ll meet the fire safe requirement of BS 6755 and API 6FA.

The top entry trunnion supported design and unique seat retraction technique gives the convenience of in-line repair or replace valve internal components without dismantling it from pipe line.

Because each ball seat shuts off the line fluid independently on the upstream side, so this series ball valves are suitable for double block and bleed application.Secondary sealant injection system for stem and seat is provided for emergency stop of accidental seat or stem leakage.

Design Features

Anti-Static Device

Blow-out Proof Stem

Fire Safe Design

Emergency Sealant Injector

Top entry ball valve is mainly applicable for pipeline and industry system such as petroleum, chemical engineering and nuclear power plants. Its body adopts an integrated design, reducing leak points. Its seat design is available for either soft or hard seal, easy for maintenance. It has a top entry and on line maintenance function. It has a lot of advantages, such as small fluid resistance, simple structure, small volume, light weight, reliable sealing, convenience for operation and maintenance, open and close quickly, as well as start and close flexibly.
Its most difference from common ball valve is that its maintenance can be made on pipe line and without dismounting from the pipe line. The back space seat structure is adopted for the seat and the rear portion of seat retainer is oblique angle to prevent accumulation of impurity from affecting back space of seat.

It's featured by its small torque and reliable seal; and unlike common ball valve types, its seat with a spheroidal structure can adjust the seal position automatically.

Standard

Design and manufacture standard: ASME B16.34, API608, API6D and BS5351

End flange: ASME B16.5

Butt Weld: ASME B16.25

Inspection and Testing: API598

Face to face : ASME16.10 and DIN3202

Fire Safe Test : API 607/API 6FA
