Ball Valve

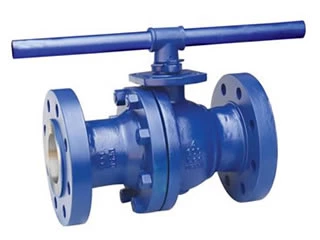

Floating Ball Valve

The series FFB Tow-Piece,floating ball valve 1/2"-6" ANSI Class 150-600,1/2"-2" ANSI Class 900-1500,1/2"-1" ANSI Class 2500 in full and reduce port

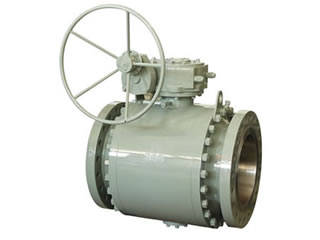

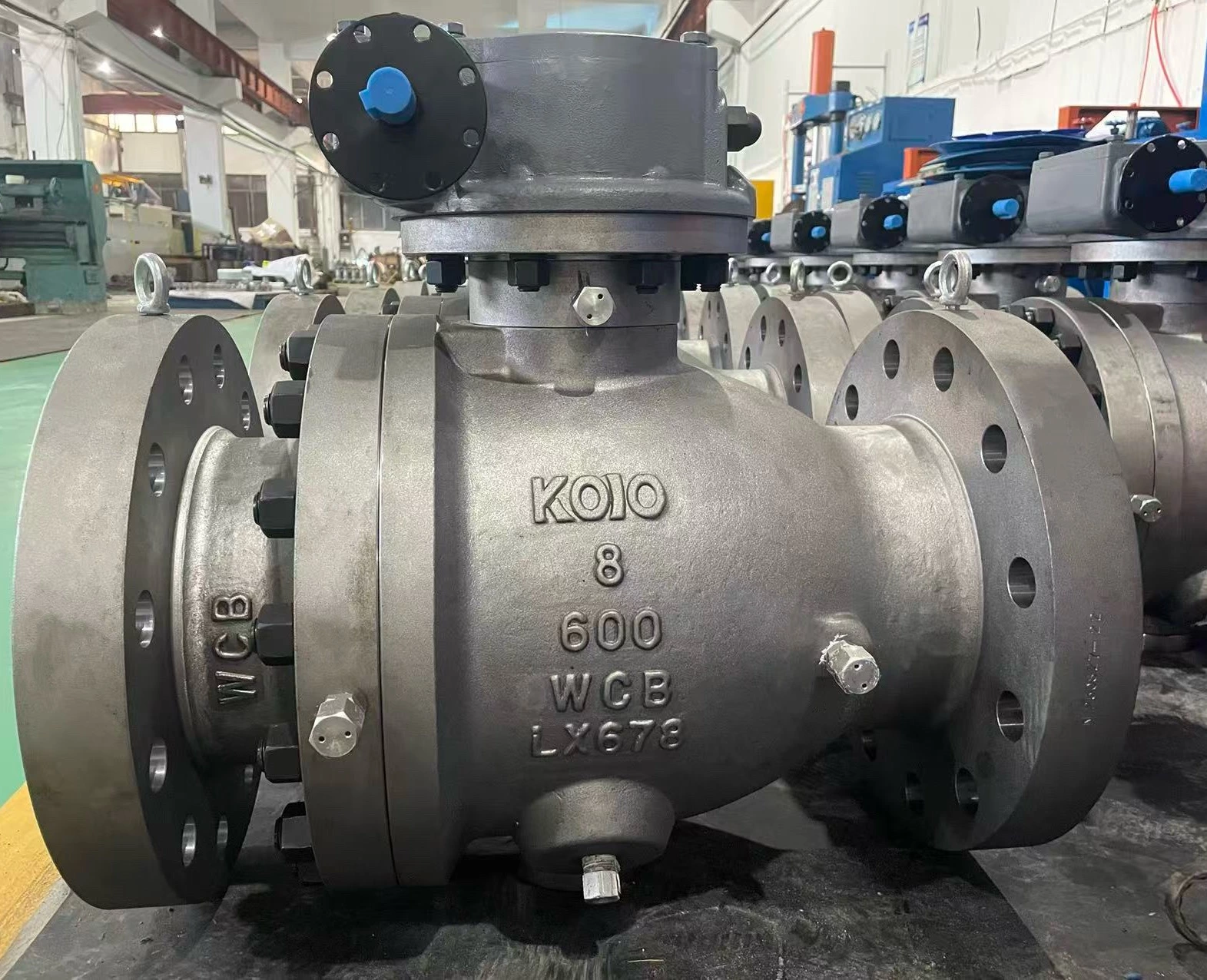

Trunnion Mounted Ball Valve

KOJO trunnion mounted ball valves feature: a full line product offering with valves ranging in 2"-42", ANSI classes 150LB - 2500LB, forged steel bolted or all welded body, close coupled trunnion block design for low operating torques, secondary seat sealant feature.Special seat compounds are also available. Each valve meets, Options include stem extensions, actuators, pipe pups and specialized coatings.

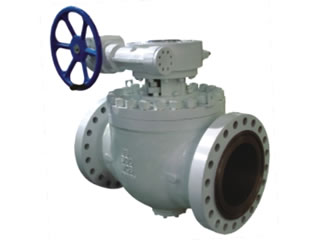

Top Entry Ball Valve

KOJO series BT Top entry ball valves are available in size 2~24”ANSI class rating 150 to 1500 and temperature ratings of -46 to 250 . A ll meet the fire safe requirement of BS 6755 and API 6FA.

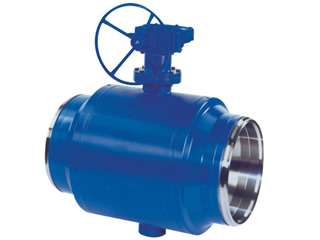

Fully Welded Ball Valve

Normal Size: 1/2”~40”
Pressure Rating:CLASS 150~2500
Design Standard:ASME B 16.34/API 6D /API 608/BS EN ISO17292/ISO14313
Face To Face Dimensions:ASME B 16.10/API 6D/EN558
Connection End:ASME B 16.5/ASME B 16.47/ASME B 16.25/EN1092/JIS B2220/GOST12815

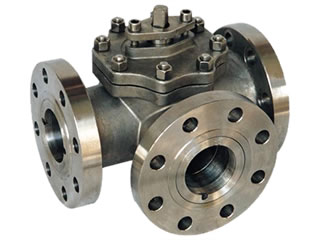

3 Way Ball Valve

Size:2″ ~ 48″ Rating:ANSI 150lb ~ 2500lb,Full port and standard port. 4 seat design for L-Port and T-port flow pathes. reinforced teflon seats. temperature rated to 450 deg F. self adjusting stem packing. ISO5211 mounting pad allows for direct mountin of electric and pneumatic actuators. actuation Packages Available. 1/4" to 2" NPT
